Description

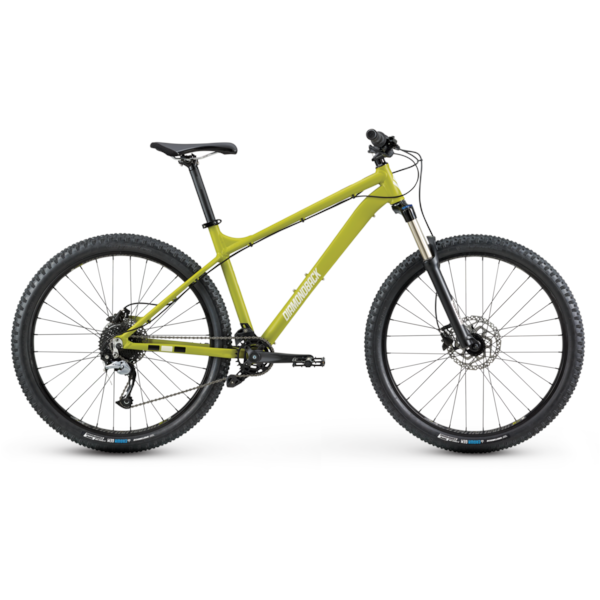

pick up mountainbike Diamondback Line - Mens (Medium) - Matte Green *IN STORE PICK-UP ONLY*This item is only available for IN STORE PICK UP. It will not be shipped; it is only only able to be picked up at our store C&W CYCLE in Morenci, MI. The Line is a do it all hardtail thatll have you pushing and redefining your limits. There was a time when every mountain bike was an all around hardtail. The Line follows in that great tradition but that doesnt mean its some kind of crusty throwback. Weve equipped the Line with a cutting edge frame
This item is only available for IN STORE PICK-UP. It will not be shipped; it is only only able to be picked up at our store - C&W CYCLE - in Morenci, MI.
The Line is a do-it-all hardtail that’ll have you pushing and redefining your limits.
There was a time when every mountain bike was an all-around hardtail. The Line follows in that great tradition — but that doesn’t mean it’s some kind of crusty throwback. We’ve equipped the Line with a cutting-edge frame that’s lightweight yet bomber. Stable under pressure, yet playful when you’re looking to boost a little air or hit that next corner a bit faster than is, strictly speaking, wise.
The Line’s modern frame is dressed out in parts that are just as impressive. A Shimano 1x9 drivetrain lets you blaze through the gears with pinpoint precision every single time. Because we know hard-charging riders gravitate to these progressive trail bikes, we’ve also added a bit more security in the form of a chain guide with roller, a capable SR Suntour XCR 120mm travel fork (with a lock-out for those big climbing days) and powerful Shimano hydraulic disc brakes.
Climbs, descents, berms, a bit of jumping: the Line upholds the do-it-all hardtail tradition … without being traditional at all.
- Reliable 6061-T6 aluminum hardtail frame with progressive, low-slung geometry for trail riding performance
- Custom-formed and butted tubing adds strength without adding weight
- Smooth front suspension courtesy of an SR Suntour XCR 120mm travel fork
- Shimano 1x9 single-ring drivetrain with chain guide delivers simple, hassle-free performance
- 27.5-inch DP24 Doublewall wheels can take a pounding
- Frame is compatible with internally routed dropper posts
Color: Matte Green
Specs
| Frame | 6061-T6 Butted Alloy for 27.5", 1 1/8" Head Tube, Formed Top and Down Tube, w/ Integrated Disc Brake Tabs, Progressive Geometry, Internal Dropper Ready |
|---|---|
| Fork | SR Suntour XCR 120mm Travel, 32mm Stanchions, Magnesium Lowers, w/ Preload Adjust and Hydraulic Lock Out |
| Headset | FSA IS-3/NO.11 Integrated Style |
| Rims/Wheels | 32h Diamondback DP25 Doublewall |
| Hubs | Front: 32h Alloy w/ CNC Disc Mount, 100mm Rear: 32h Alloy w/ CNC Disc Mount, Cassette; 135mm |
| Spokes | 14g Stainless Steel |
| Tires | Vee Rubber Crown Gem 27.5x2.35 |
| Crankset | Alloy Arm |
| Chainrings | 30T Steel "Narrow Wide" Single Ring |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z9, 9 Speed |
| Front Derailleur | Full ISCG-05 Chain Guide w/ Roller |
| Rear Derailleur | Shimano Acera M3000 Shadow, 9 Speed |
| Cassette/Rear Cogs | Shimano HG200, 9 Speed, 11-36T |
| Shifters | Shimano Acera M3000, 9 Speed |
| Handlebars | Diamondback, 750mm Wide, 15mm Rise, 31.8 Bar Bore |
| Tape/Grips | DB "Flanged" 135mm Silcone |
| Stem | Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore |
| Brake Levers | Shimano MT200 Hydraulic |
| Brakes | Shimano MT200 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors |
| Pedals | DB4L Alloy Platform |
| Saddle | DB Sync'r Saddle |
| Seat Post | Alloy Micro Adjust, 30.9mm |
